New Technology

Nano & Specialty Compounds

new technology

CNT conductive composite material

Material that maintains and enhances the existing physical properties of polymer material; and material that transmits conductivity at low amounts by distributing highly conductive carbon nanomaterial on polymer material
Surface Resistance : 103 ~ 107 Ω/sq

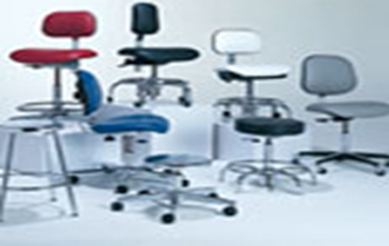

  • ESD Clean room Chair

  • Conductive Fiber

  • Wafer Tray

Grade C130G C1370 CNP100-ST C1355 C800A C1300
Base Polymer PA6 TPU PA6 TPE ABS ETFE
Conductivity 10 5~106 106~107 105~106 106~107 106~108 104~106
GF Contents 30%
Application mobile item mobile item caster mobile item electric item mobile item

Light diffusion composite material

Semi-transparent material that diffuses light from a point or line light source to evenly spread color or brightness

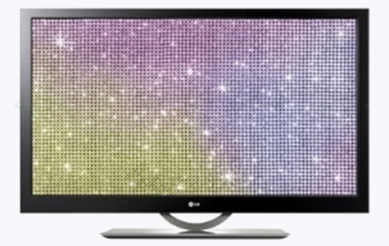

Use: Display diffusion sheet, LED light diffusion sheet

  • LED Diffusion

  • Light-Diffusion Sheet

Grade FR900-WS011 FR900-YE001 FR9600 FR9700 FR9750 FR9800 FR9850 FR9900
Base Polymer PC PC PC PC PC PC PC PC
T/T (Transmittance) 57 43 60 70 75 80 85 90
Application For extruding LED cover Semiconductor line led cover LED cover LED cover LED cover LED cover LED cover LED cover

PBT exclusively for contact lens molds

This grade satisfies PBTs for contact lens molds and helps enhance productivity

Feature & Benefits

Grade that satisfies product properties (LM400, LM400S), LM400 (M)

LM400
Physical Properties		 GRADE T.S T.E F.S F.M IZOD IMPACT Specific Gavity Moisture
LM400 600kg/㎠ 20% 900kg/㎠ 25,000kg/㎠ 5 1.36 0.02
LM400(M)
LM400(S)
LM400
Work Conditions		 GRADE drying temp. drying time moisture rate melting point cylinder temp. nozzle temp. mold temp.
LM400 80~100℃ 3~5hrs 0.02% 225℃ 245~260℃ 250~265℃ 40~80℃
LM400(M)
LM400(S)
